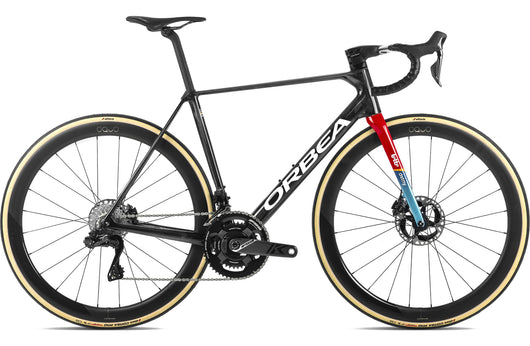

NEW SPECIAL EDITION TEAM BIKE
The union between Lotto Dstny and Orbea starts a new era in which we hope to inspire passionate cyclists all over the world to dream big. To mark the union, we have created special Team Replica bikes so you can come along for the ride and feel like the pros!
PRAISE THE LIGHT
Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.
The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome to the ultimate climbing machine!
DOMINATE THE CLIMB
Achieving Orca's light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.
RIGID IN ALL THE RIGHT PLACES
But having the lightest bike is worth nothing if it isn’t stiff and efficient. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.
THE FEEL OF FREEDOM
There is indeed just something special about the feel of a lightweight bike. We love the instant acceleration when you stamp on the pedals and the responsive, agile handling as you carve through the turns.
NO TRADE-OFFS
Our clever frame design means that stiffness doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximising traction and compliance.
PERFORMANCE DESIGN
Orca is built on our understanding of performance and design, reflecting our belief that bikes should look great and ride better. Orca’s minimal, timeless lines give it its distinctive style and cover some very modern technology.
SPECIFICATIONS
FRAMESET
-
FRAME - Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
-
FORK - Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
-
HEADSET - FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
-
CRANKSET - FSA Powerbox K-Force Team Edition 36x52t
-
SHIFTERS - Shimano R9270
-
CASSETTE - Shimano Dura-Ace R9200 11-30t 12-Speed
-
REAR DERAILLEUR - Shimano Dura-Ace Di2 R9250
-
FRONT DERAILLEUR - Shimano Dura-Ace Di2 R9250
-
CHAIN - Shimano CN-9100
COCKPIT
-
HANDLEBAR - Vision Metron 5D ACR Integrated 3K, Reach 80mm, Drop 125
-
STEM - Integrated Vision Metron 5D ACR 3K, -6º
BRAKES - Shimano R9270 Hydraulic Disc
WHEELS
-
WHEELS - Oquo Road Performance RP45LTD
-
TYRES - Vittoria Corsa Pro G2.0 TLR 700x28c
-
FRONT WHEEL AXLE - Orbea Thru Axle 12x100mm M12x2 P1 Lite
-
REAR WHEEL AXLE - Orbea Thru Axle 12x142mm M12x2 P1 Lite
COMPONENTS
-
SEATPOST - OC Performance XP10-S Carbon, 27.2mm, Setback 20
-
SADDLE - Selle Italia SLR Boost Fill Carbon Rail Ø7x9 mm
ACCESSORIES
-
HANDLEBAR TAPE - Lyzard DSP 2.5mm
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
