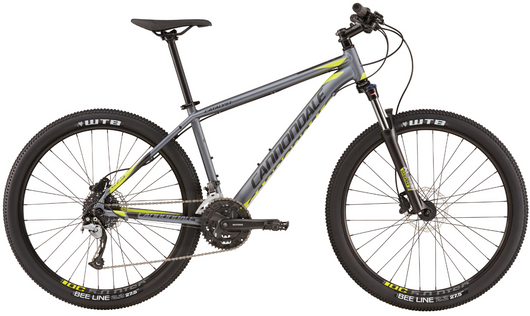

2016 CATALYST 1

• MODEL - 2016 Catalyst 1
• FRAME - Catalyst, butted 6061 Alloy, 1-1/8” head tube, rack and fender mounts, 27.5 "
• FORK - SR Suntour XCM-HLO-DS, 100mm, hydraulic lockout, 1-1/8", coil spring, 27.5 "
• FRONT HUB - Alloy Disc
• REAR HUB - Alloy Disc, Cassette , sealed, loose ball bearings, QR, 32h
• SPOKES - Stainless, 14g
• RIMS - Alex DC 5.0, double wall, 32-hole
• TYRES - WTB BeeLine, 27.5x2.2"
• CRANK - Shimano M371, 44/32/22
• BB - Tange LN 3912, square taper
• CHAIN - Shimano HG53, 9-speed
• CASSETTE - Sunrace, 11-34, 9-speed
• FRONT DERAILLEUR - Shimano Altus, 31 .8 clamp
• REAR DERAILLEUR - Shimano Acera, 9-speed
• SHIFTERS - Shimano M3000 Acera
• HANDLEBAR - Cannondale C4, 6061 alloy, 20mm rise, 680mm
• STEM - Cannondale C4, 6061 Alloy, 31.8, 7 deg.
• HEADSET - VP 88, threadless
• BRAKES - Promax Solve hydraulic disc, 180/160mm
• SADDLE - Cannondale Stage 2
• SEATPOST - Cannondale C4, 6061 alloy, 27.2x350mm
• COLOUR - Charcoal Grey w/ Jet Black, Neon Spring (GRY)

Cannondale Disclaimer: Please note that, based on component availability and other factors, specifications are subject to change without notice.
