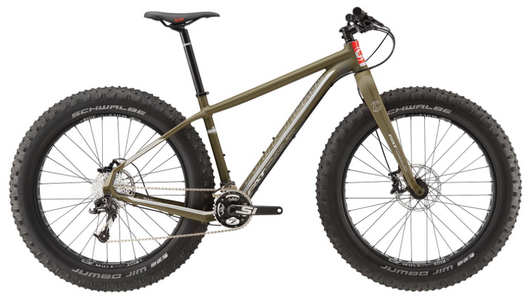

2016 FAT CAAD 2

• MODEL - 2016 Fat CAAD 2
• FRAME - Fat CAAD, SmartFormed Alloy, BB30XL, 1.5 Si head tube
• FORK - Cannondale Fatty-Fat Rigid, 150x15mm thru, 1.5 tapered steerer, 55mm offset
• FRONT HUB - Formula CDH-1651 150x15mm thru (front)
• REAR HUB - Formula DHL-1971, 197x12mm thru (rear) 32 hole
• SPOKES - DT Swiss Competition
• RIMS - Sun Ringle MuleFut 80 SL, 26"
• TYRES - Schwalbe Jumbo Jim 26x4.8", Snakeskin, tubeless
• CRANK - Cannondale Si, BB30a, Ai Offset Spider, 34/22
• BB - Cannondale BB30XL 166mm spindle / 120mm shell
• CHAIN - KMC X10, 10-speed
• CASSETTE - SRAM PG1030, 11-36, 10-speed
• FRONT DERAILLEUR - SRAM X5
• REAR DERAILLEUR - SRAM X7
• SHIFTERS - SRAM X5
• HANDLEBAR - Cannondale C3 riser, 6061 double-butted alloy, 740mm, 6 deg. rise, 9 deg. sweep
• STEM - Cannondale C3, 1-1/8", 31.8, 5 deg.
• HEADSET - Tange Seiki 1-1/8 to 1.5", integrated
• BRAKES - SRAM Guide hydraulic disc, 180/160mm
• SADDLE - WTB Silverado Comp
• SEATPOST - Cannondale C3, 6061 alloy, 31.6 x 400mm
• COLOUR - Matte Green Clay w/ Gloss Reflective Silver, Acid Red (GCL)

Cannondale Disclaimer: Please note that, based on component availability and other factors, specifications are subject to change without notice.
